Single girder gantry crane

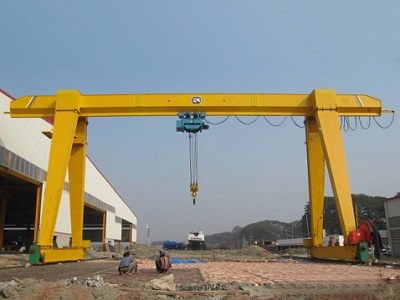

MH model box frame single girder gantry crane

Capacity: 3~32ton
Span: 7.5~35m
Lifting height: 6~12m
Duty class: A3
Product description: MH model box frame single girder gantry crane with monorail electric hoist
INQUIRY

MH model box frame single beam gantry crane is matched with CD1 or MD1 model wire rope electric hoist, it is a kind of track travelling mid-duty type gantry crane, the main beam and legs are manufactured by plate steel, and the frame is box frame, the lifting capacity from 3ton to 32ton, the span from 7.5m to 35m, the working temperature within -20--+42 centigrade, the duty class is A3.

This single beam gantry crane is commonly used gantry crane, it be used in outside warehouse for loading/unloading and lifting material. Both ground control and cabin control.
