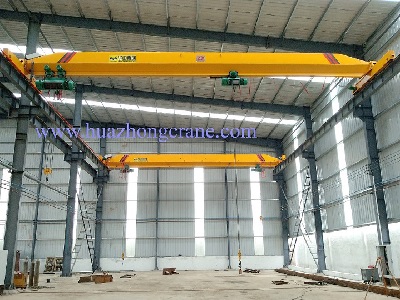

Single girder bridge crane
LD model single girder bridge crane
- Capacity: 1~20ton
- Span: 7.5~35m
- Lifting height: 6~30m
- Duty class: A3
- Product description: LD model single girder bridge crane with wire rope electric hoist.
LD model single girder bridge crane is characterized by more reasonable structure and higher strength steel as a whole, the box frame main beam and end carriage are made by U-section steel.
This single girder bridge crane is used together with CD1/MD1 model wire rope electric hoist or HC/HM model wire rope electric hoist as a complete set, It is light duty class bridge crane, the capacity from 1 to 20 tons. The span from 7.5m to 35m, the working grade are A3. Working temperature within -25 to +45 centigrade.
This single girder bridge crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive to corrosives environment.
The control models are pendant handle control, wireless remote control and cabin control for choice.
