Double girder gantry crane
ME model double beam gantry crane
- Capacity: 10~200ton
- Span: 7.5~35m
- Lifting height: 6~12m
- Duty class: A3~A6
- Product description: ME model double beam gantry crane have two main lifting mechanism, it is heavy duty type gantry crane.
ME model double beam gantry crane have two main hooks, it is applied in outside plant or railway sideways to conduct common lifting and loading unloading works.

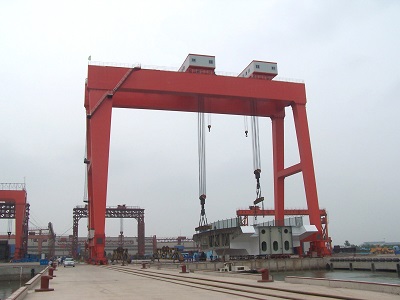

This gantry crane is composed of two main hooks, two main beams, four support legs, crane travelling systems, trolley and electric equipment. The frame of beams and legs adopts box-type welding mechanism.
The crane travelling mechanism adopts separate drive. All mechanisms are operated in the driver's cabin. Power supply of crane adopts cables and sliding wires, select one when ordering.
The ME model double beam gantry crane is heavy duty type gantry crane, the duty grade are A3~A6, the capacity from 10ton to 200ton, the span from 7.5m to 35m, the standard lifting height are 6m, 9m and 12m, the temperature of working environment within -20~+42 degree.
