Double girder gantry crane

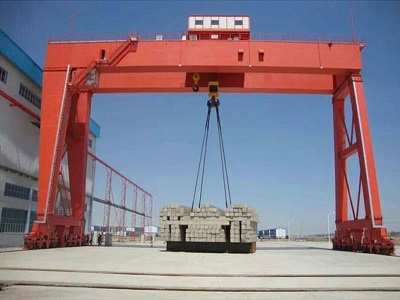

MG model double girder gantry crane
- Capacity: 5~200ton
- Span: 7.5~35m
- Lifting height: 6~12m
- Duty class: A3~A6
- Product description: MG model double girder gantry crane with two main beam, it is heavy duty type gantry crane.
MG model double girder gantry crane with hooks is applied in outside plant or railway sideways to conduct common lifting and loading unloading works.
This gantry crane is composed of two main beams, four support legs, crane travelling systems, trolley and electric equipment. The frame of beams and legs adopts box-type welding mechanism.
The crane travelling mechanism adopts separate drive. All mechanisms are operated in the driver's cabin. Power supply of crane adopts cables and sliding wires, select one when ordering.
The MG model double girder gantry crane is heavy duty type gantry crane, the duty grade are A3~A6, the capacity from 5ton to 200ton, the span from 7.5m to 35m, the standard lifting height are 6m, 9m and 12m, the temperature of working environment within -20~+42 degree.
